Rechargeable Lifepo4 Prismatic Cell 3.2V 15AH 3C Continuous Discharge Rate

    Buy cheap Rechargeable Lifepo4 Prismatic Cell 3.2V 15AH 3C Continuous Discharge Rate from wholesalers

    Buy cheap Rechargeable Lifepo4 Prismatic Cell 3.2V 15AH 3C Continuous Discharge Rate from wholesalers
    • Buy cheap Rechargeable Lifepo4 Prismatic Cell 3.2V 15AH 3C Continuous Discharge Rate from wholesalers
    • Buy cheap Rechargeable Lifepo4 Prismatic Cell 3.2V 15AH 3C Continuous Discharge Rate from wholesalers
    • Buy cheap Rechargeable Lifepo4 Prismatic Cell 3.2V 15AH 3C Continuous Discharge Rate from wholesalers
    • Buy cheap Rechargeable Lifepo4 Prismatic Cell 3.2V 15AH 3C Continuous Discharge Rate from wholesalers

    Rechargeable Lifepo4 Prismatic Cell 3.2V 15AH 3C Continuous Discharge Rate

    Ask Lasest Price
    Brand Name : Benergy
    Model Number : BPS-LFP15AHP
    Certification : CE, ROHS, MSDS, UN38.3,IEC62133
    Price : USD 6-15 /pcs
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 5000pcs/month
    Delivery Time : 15-45 days
    • Product Details
    • Company Profile

    Rechargeable Lifepo4 Prismatic Cell 3.2V 15AH 3C Continuous Discharge Rate

    Rechargeable Lifepo4 Prismatic Cell 3.2V 15AH 3C Continuous Discharge Rate

    Lifepo4 Battery Cells 3.2V 15Ah Lithium Iron Phosphate Battery

    What is an Lifepo4?


    The lithium iron phosphate battery (LiFePO4 battery) or LFP battery (lithium ferrophosphate), is a type of lithium-ion battery using lithium iron phosphate (LiFePO4) as the cathode material, and a graphitic carbon electrode with a metallic backing as the anode. The energy density of LiFePO4 is lower than that of lithium cobalt oxide (LiCoO2), and also has a lower operating voltage. The main drawback of LiFePO4 is its low electrical conductivity. Therefore, all the LiFePO4 cathodes under consideration are actually LiFePO4.
    The characteristic of Benergy cells:
    * Low cost. As the battery or long time using, the costs is even much lower than lead acid battery.
    * Low toxicity
    * Well-defined performance
    * Long-term stability
    Now Benergy LiFePO4 is widely used for energy storage,vehicle use, utility scale stationary applications, and backup power.LFP batteries are cobalt-free.

    Parameter Table



    Product TypeLithium Iron Phosphate Cell
    Shell TypePlastic Shell
    Brand NameBenergy
    Voltage3.2V
    Nominal Capacity15AH
    Minium Capacity20AH
    IR≤5mΩ
    Size27*70*160mm (W,L,H)
    Weight600g±150g
    Charge ModeCC/CV (Continuous current/Continuous Voltage)
    Max Charge Current15A (1C)
    Charge Cut Off Voltage3.65V±0.05
    Standard Discharge Current3A (0.2C)
    Max Continuous Discharge Current45A (3C)
    Peak Discharge Current @3 sec150A
    Discharge Cut Off Voltage2.5V
    TerminalsM6
    Cycle Life>3000 Times (0.5C charge/discharge, 80% DOD)
    Discharge Temperature-10~55℃
    Charge Temperature0~45℃
    ApplicationElectric boat, yacht, marine, EV etc.
    Warranty2 Years
    OEM/ODMYes(Accepted)

    Discharge curves



    Cyle life

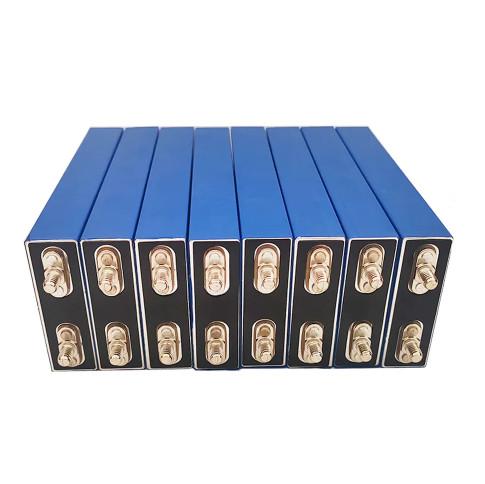

    Product Picture

    Rechargeable Lifepo4 Prismatic Cell 3.2V 15AH 3C Continuous Discharge Rate


    Package

    Benergy pack the cells professionally, with foam well protect each cell. And then put into UN carton to make sure the batteries are safe. And then we ship the cell by Fedex/UPS/DHL or by air/by sea to customers.


    Certifications

    Rechargeable Lifepo4 Prismatic Cell 3.2V 15AH 3C Continuous Discharge Rate
