    5C Continuous Discharge Prismatic Cell 3.2V 10AH LiFePO4 Battery

    Ask Lasest Price
    Brand Name : Benergy
    Model Number : BPS-LFP10AHP
    Certification : CE, ROHS, MSDS, UN38.3,IEC62133
    Price : USD 6-7 /pcs
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 5000pcs/month
    Delivery Time : 15-45 days
    • Product Details
    • Company Profile

    5C Continuous Discharge Prismatic Cell 3.2V 10AH LiFePO4 Battery

    3.2V 10AH Lifepo4 Prismatic Cell Rechargeable Lithium Battery For Yacht


    5C Continuous Discharge Prismatic Cell 3.2V 10AH LiFePO4 Battery

    Benergy start to produce since 2009. And it is proved to be the most stable and safest lifepo4 cells after over 10 years marketing proving.


    Parameter Table:


    Product TypeLithium Iron Phosphate Cell
    Shell TypeAluminum Shell
    Brand NameBenergy
    Voltage3.2V
    Nominal Capacity10AH
    Minium Capacity10AH
    IR≤5mΩ
    Size15*65*150mm (W,L,H)
    Weight300g±150g
    Charge ModeCC/CV (Continuous current/Continuous Voltage)
    Max Charge Current10A (1C)
    Charge Cut Off Voltage3.65V±0.05
    Standard Discharge Current2A (0.2C)
    Max Continuous Discharge Current50A (5C)
    Peak Discharge Current @3 sec100A
    Discharge Cut Off Voltage2.5V
    TerminalsM6
    Cycle Life>2500 Times (0.5C charge/discharge, 100% DOD)
    Discharge Temperature-10~55℃
    Charge Temperature0~45℃
    ApplicationElectric boat, yacht, marine, EV etc.
    Warranty2 Years
    OEM/ODMYes(Accepted)

    Cell Diagram:


    Discharge curves:

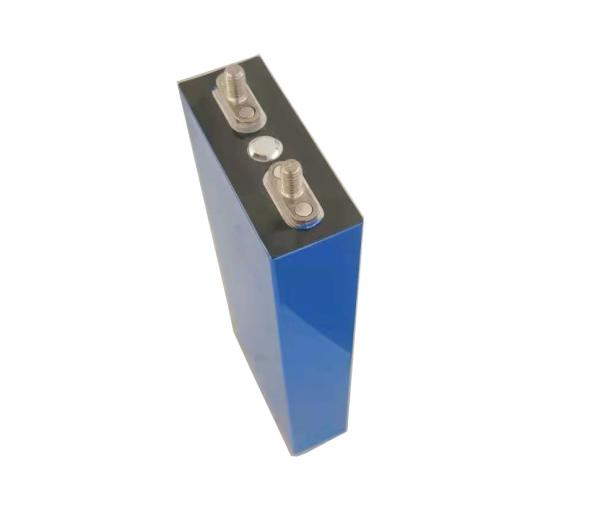

    Product Picture:

    New produced cell with no PVC

    New produced Cell after add PVC

    Product Advantages

    1. Long cycle life. More than 6000 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles);

    2. High energy density. 1/3 smaller in size, 2/3 lighter in weight than lead acid battery.

    3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.

    4. Good charging and discharging performance. 5C continous discharge and 10C burst.

    5. Full green and no pollution. All raw material of the batteries are environmental-friendly,

    6. Wide working temperature range: From -20℃ to 60℃, extremely cold and hot weather will not affect its performance.

    7. Bar Code management system. All data is managed by system, we can trace the cell information and match every pack with closest data.


    Package



    Application:


    Benergy lifepo4 prismatic cells can be widely used for electric vehicles, power tools, solar system, energy storage system etc.

    We can use our lifepo4 cells to customize different battery packs for you and provide you the best power solutions.
