3.2V 160AH Lifepo4 Prismatic Cell For Electric Boat, Electric
Vehicles, Marine, Yacht etc.
What is an Lifepo4?
LiFePo4 battery mean lithium Iron Phosphate battery which is a kind
of lithium ion rechargeable battery. The single voltage is 3.2V and
capacity can be 90mAH to 300AH.
LiFePo4 batteries are the safest lithium battery type currently
avaliable on the market today. With characteristic of lighter
weight, smaller size, longer cycle life, free maitainance, no
pollution, no memory effect they can fully replace lead acid
batteries and Ni-MH/Ni-CD batteries.
Benergy has been producing and exporting Lifepo4 cells since 2009
and we have been providing quality, reliable and safe battery
solutions worldwidely.
What is the advantage of plastic shell lifepo4 cells?
As plastic shell is more felexible than aluminum shells or steel
shells. The cells will not swell but not explosion if there's any
problem. So plastic shell cells is the safest cells.
Also, as they are heavier than aluminum cells, they are very
suitable for marine, boat, yacht application.
Benergy can make 3.2V 160AH cells bear 400A continuous discharge.
Plastic shell Lifepo4 cells is the first product Benergy start to
produce since 2009. And it is proved to be the most stable and
safest lifepo4 cells after over 10 years marketing proving.
Parameter Table:
| Product Type | Lithium Iron Phosphate Cell |
| Shell Type | Plastic Shell |
| Brand Name | Benergy |
| Voltage | 3.2V |
| Nominal Capacity | 160AH |
| Minium Capacity | 160AH |
| IR | ≤1mΩ |
| Size | 85*170*245mm (W,L,H) |
| Weight | 5300g±150g |
| Charge Mode | CC/CV (Continuous current/Continuous Voltage) |
| Max Charge Current | 160A (1C) |
| Charge Cut Off Voltage | 3.65V±0.05 |
| Standard Discharge Current | 32A (0.2C) |
| Max Continuous Discharge Current | 480A (3C) |
| Peak Discharge Current @3 sec | 800A |
| Discharge Cut Off Voltage | 2.5V |
| Cycle Life | >2500 Times (0.5C charge/discharge, 100% DOD) |
| Discharge Temperature | -10～55℃ |
| Charge Temperature | 0～45℃ |
| Application | Electric boat, yacht, marine, EV etc. |
| Warranty | 2 Years |
| OEM/ODM | Yes(Accepted) |
Cell Diagram:

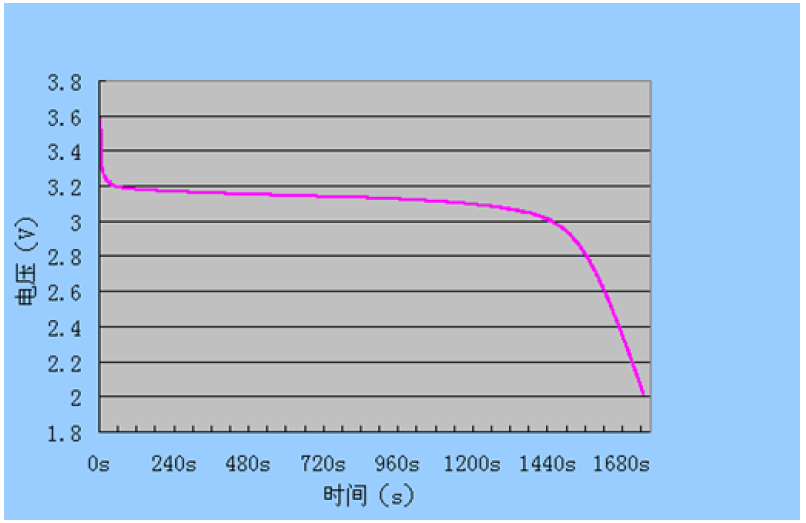

Discharge curves:
3.2V 160AH Lifepo4 Prismatic Cell 2C (360A)continuous discharge
curve

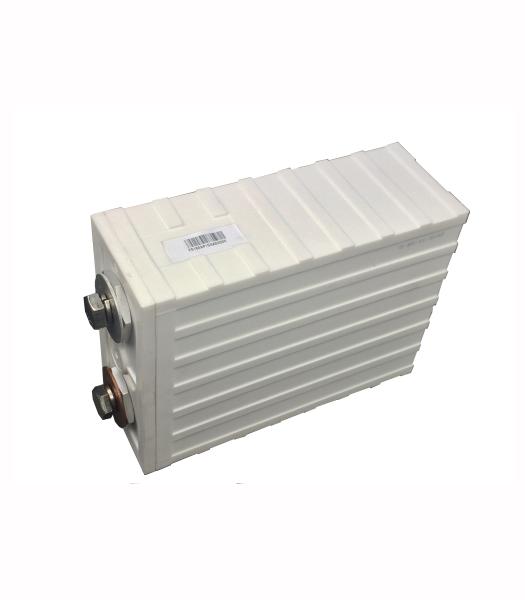

Product Picture
Product Advantages
1. Long cycle life. More than 2500 times (charge and discharge at 1C, 80% capacity retention after
2500 cycles);
2. Compact in size and light in weight. 1/3 smaller in size, 2/3 lighter in weight than lead acid battery.
3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short
circuit.
4. Good charging and discharging performance. 3C continous discharge and 10C burst.
5. Full green and no pollution. All raw material of the batteries are environmental-friendly,
6. Wide working temperature range: From -20℃ to 60℃, extremely cold and hot weather will not affect
its performance.
7. Bar Code management system. All data is managed by system, we can trace the cell information
and match every pack with closest data.
8. Produced with automatic equipments.
Package
