AA Cylindrical Li Ion Battery 3.2V 500mAh LiFePO4 14500 Protected Lithium Ion Battery Cell

    Buy cheap AA Cylindrical Li Ion Battery 3.2V 500mAh LiFePO4 14500 Protected Lithium Ion Battery Cell from wholesalers

    Buy cheap AA Cylindrical Li Ion Battery 3.2V 500mAh LiFePO4 14500 Protected Lithium Ion Battery Cell from wholesalers
    • Buy cheap AA Cylindrical Li Ion Battery 3.2V 500mAh LiFePO4 14500 Protected Lithium Ion Battery Cell from wholesalers
    • Buy cheap AA Cylindrical Li Ion Battery 3.2V 500mAh LiFePO4 14500 Protected Lithium Ion Battery Cell from wholesalers
    • Buy cheap AA Cylindrical Li Ion Battery 3.2V 500mAh LiFePO4 14500 Protected Lithium Ion Battery Cell from wholesalers
    • Buy cheap AA Cylindrical Li Ion Battery 3.2V 500mAh LiFePO4 14500 Protected Lithium Ion Battery Cell from wholesalers

    AA Cylindrical Li Ion Battery 3.2V 500mAh LiFePO4 14500 Protected Lithium Ion Battery Cell

    Ask Lasest Price
    Brand Name : Benergy
    Model Number : BNG-14500AHP
    Certification : CE, ROHS, MSDS, UN38.3,IEC62133
    Price : USD 1.5-3 /pcs
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 5000pcs/month
    Delivery Time : 15-45 days
    • Product Details
    • Company Profile

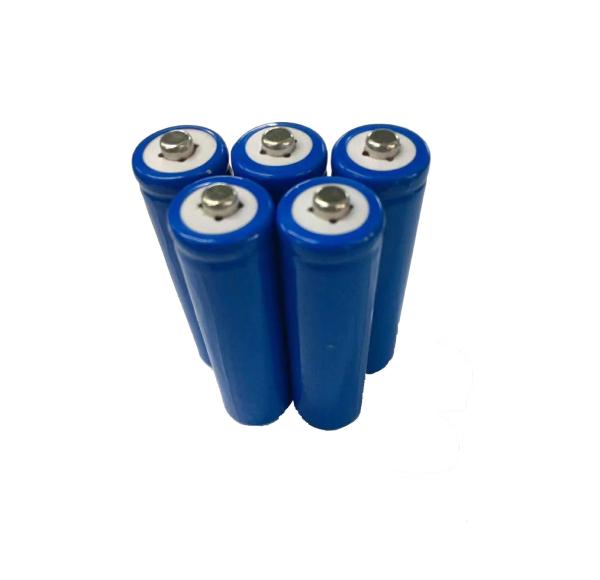

    AA Cylindrical Li Ion Battery 3.2V 500mAh LiFePO4 14500 Protected Lithium Ion Battery Cell

    AA LiFePO4 Battery Cells 3.2V 500mAH 14500 Cells Lifepo4 Cells For Power Tools Toys Electric Products

    Product Description for Rechargeable Lithium Battery 3.2v 500mAh, replace Ni-MH, Ni-CD, dry battery


    Parameter Table:

    ItemCondition/ Note

    Specification

    Remarks

    2.1 Norminal Capacity

    1C discharge capacity

    500 mAh

    2.2 AC Impedance

    At AC 1000 Hz

    ≤60mΩ

    2.3 Nominal Voltage

    3.2 V

    2.4 Cell Size

    Cell Diameter

    14.1±0.2 mm

    Max. 14.5 mm

    For details, please prefer to Figure 1.

    Cell Height

    51.5±0.5 mm

    Max. 52mm

    2.5 Cell Weight

    (single cell)18± 2 g

    2.6 End-of-charge Voltage

    CC Mode

    3.65 V

    2.7 End-of-charge Current

    CV Mode

    0.3 A

    2.8 Charging Method

    Standard Charging

    1 C at CC/CV60 min

    Quick Charging

    2C at CC/CV30 min

    2.9 End-of-discharge Voltage

    CC Mode

    2.0 V

    2.10 Max continuous Discharging Current

    500mA

    2.11 Max Pulse Discharging Current

    300010s

    2.12 Cycle Life

    1 C/ 100% DOD>2000 cycles

    2.13 Operating Temperature Range

    Charging Temperature

    0~60 °C
    Discharging Temperature

    -20~ 60°C

    Storage Temperature

    ≤one year-20~ 45°C

    2.14 Appearance

    Without break, scratch, distortion, contamination, leakage and so on



    Product Advantages

    1. Long cycle life. More than 2500 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles);

    2. Compact in size and light in weight. 1/3 smaller in size, 2/3 lighter in weight than lead acid battery.

    3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.

    4. Good charging and discharging performance. 3C continous discharge and 10C burst.

    5. Full green and . All raw material of the batteries are environmental-friendly,

    6. Wide working temperature range: From -20℃ to 60℃, extremely cold and hot weather will not affect its performance.

    7. Bar Code management system. All data is managed by system, we can trace the cell information and match every pack with closest data.

    8. Produced with automatic equipments.


    Certificate



    Package



    Application


    Shipping



    Contact

    Benergy Tech Co. Ltd
    Sales Engineer:Kevin Zhang
    Web: www.benergytech.com
    Email: info@benergytech.com
    skype: simpleleu
    Tel/What's APP: +86 13580 452443


    LIFEPO4 BATTERY DESIGN MANUFACTURING
