DC 100V Car Lithium Ion Battery Level Indicator 5mA With Color Screen

    Buy cheap DC 100V Car Lithium Ion Battery Level Indicator 5mA With Color Screen from wholesalers

    Buy cheap DC 100V Car Lithium Ion Battery Level Indicator 5mA With Color Screen from wholesalers
    • Buy cheap DC 100V Car Lithium Ion Battery Level Indicator 5mA With Color Screen from wholesalers
    • Buy cheap DC 100V Car Lithium Ion Battery Level Indicator 5mA With Color Screen from wholesalers
    • Buy cheap DC 100V Car Lithium Ion Battery Level Indicator 5mA With Color Screen from wholesalers

    DC 100V Car Lithium Ion Battery Level Indicator 5mA With Color Screen

    Ask Lasest Price
    Brand Name : BENERGY
    Model Number : BID-001
    Certification : CE, ROHS, MSDS, UN38.3,IEC62133
    Price : USD 7-8/pcs
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 5000pcs/month
    Delivery Time : 15-45 days
    • Product Details
    • Company Profile

    DC 100V Car Lithium Ion Battery Level Indicator 5mA With Color Screen

    10-100V Lithium Battery Accessories Battery Indicator Battery Pack Level Indicator


    Advantages:


    * Can show battery pack temperature

    * Anti reverse connection protection

    * Color screen display

    * Low voltage alarm

    * Low power consumption

    * Red wire connect to battery pack positive pole, black wire connect to battery pack negative pole.


    Indicator size: 61.5 * 33.5 * 13.5mm

    Insert Opening size: 58.5 * 28.5mm

    Net weight: 21g

    Working voltage: dc10-100v

    Working power consumption: 5mA

    Working temperature: - 10 ℃ - 60 ℃


    Compatible with 10-100v lead-acid battery, dry battery, water battery, ternary lithium battery, lithium polymer lithium-ion battery, LiFePO4. Can measure 12V, 24V, 36V, 48V, 60V, 72V, 84v lead-acid battery, lithium battery 3.7V, including ternary lithium battery, lithium polymer battery 3 / 4 / 5 / 6 / 7 / 21, etc.


    Note: the electric quantity display is designed according to the battery discharge curve. During the use of dynamic battery or equipment battery, the percentage of electric quantity display will change with the decrease of discharge voltage, so we suggest that it is the most accurate to observe the percentage of remaining electric quantity of the meter when it is static.

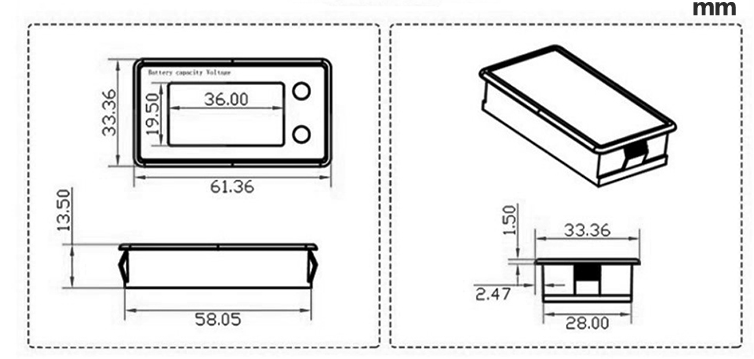

    Diagram:


    Detail parameter


    DataMinimumTypicalMaximumUnitValue
    Sizemm61.5*33.5*13.5
    Install sizemm58.5*28.5
    Indicate sizemm36*19.5
    Weight202122V
    Work voltage10100V
    Consumption56mA
    Voltage tolerance±0.1±0.5%
    Sleep consumption61012uA20V
    Alarm voltage11.5100VAdjustable
    Alarm volume607075db
    Work tempetarue-102555°C

    Applications:


    Different battery packs.


    Package



    FAQ:


    Q1: Can I get free sample?
    A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.


    Q2: How should I pay?
    A2: You can pay via T/T, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.


    Q3: What is delivery time if we place an order?
    A3: It depends order quantities. Usually, we can deliver goods within 10 -15 working days for small orders, for more QTY. order, let's confirm when you place offical order.


    Q4: Are your factory or trading company?
    A4: We are proffesional Lifepo4 cells and packs manufacturer with our own factory and brand BENERGY. We provide all kinds of OEM/ODM services for clients around globe.


    Q5.What is your warranty?
    A5:We offer 1 years warranty for the indicator.
