    2000W IP67 Waterproof 24V 45Ah Battery Charger - High Power, Durable, and Weatherproof

    Ask Lasest Price
    Brand Name : BENERGY
    Model Number : BC20-2445A
    Certification : CE, ROHS, MSDS, UN38.3,IEC62133
    Price : USD 52-60 /pcs
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 5000pcs/month
    Delivery Time : 15-45 days
    • Product Details
    • Company Profile

    2000W IP67 Waterproof 24V 45Ah Battery Charger - High Power, Durable, and Weatherproof

    24V 45A IP67 Waterproof LiFePO4 Battery Charger for Forklifts - High Efficiency, Fast Charging, CC/CV Mode, Compatible with Lithium-Ion Batteries


    The Benergy 24V 45A LiFePO4 Battery Charger is a high-performance, IP67 waterproof charging solution designed for forklifts and industrial equipment. This advanced charger features fast charging technology and operates in CC/CV (Constant Current/Constant Voltage) mode, ensuring optimal charging for lithium-ion battery packs. With its rugged, weatherproof design and high efficiency, it's perfect for demanding environments. Compatible with LiFePO4 and other lithium-ion batteries, this charger delivers reliable, safe, and efficient power for your electric forklifts and heavy-duty machinery.


    24V 45A Charger Specification:


    Product Type

    Lithium Iron Phosphate Battery Charger

    Lifepo4 Battery

    Brand NameBenergy
    For Battery Pack24V (8S) Lifepo4 Battery Packs
    Max Charge Voltage33.0V
    Charge current45A
    Size

    282×168×90mm (L,W, H)

    11.1*6.61*3.54"

    Weight

    3800g±50g

    8.38 lbs

    Charge ModeCC/CV (Continuous current/Continuous Voltage)
    Warranty1 Year
    OEM/ODMYes(Accepted)

    Main product specification:


    Max.output power

    Input voltage

    Max Output voltage

    Combined regulation

    Output current

    Combined

    regulation

    2000W90-264Vac33.0V+/-0.2Vdc+/-0.2V45A+/-3A

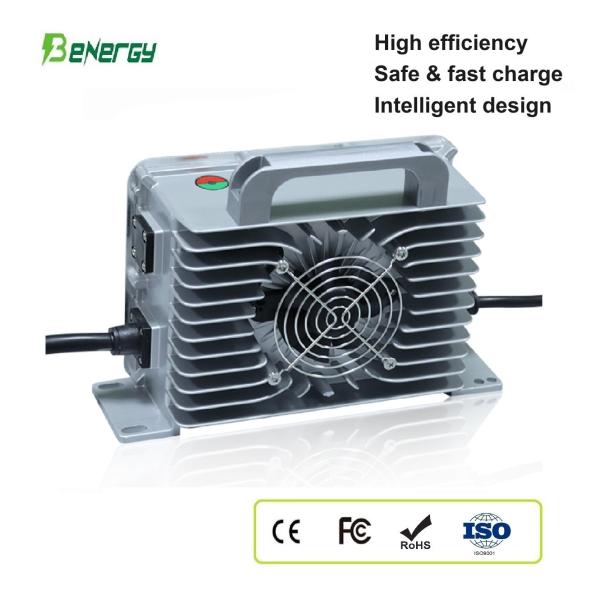

    Picture:

    2000W IP67 Waterproof 24V 45Ah Battery Charger - High Power, Durable, and Weatherproof


    2000W IP67 Waterproof 24V 45Ah Battery Charger - High Power, Durable, and Weatherproof

    Detail size:


    Working temperature very wide:


    Input connector (selectable):


    Output connector (selectable):


    Applications:

    Benergy Chargers can be widely used in golf carts, electric bicycles, electric sweepers, electric forklifts, electric motorcycles such as Power batteries and storage batteries.

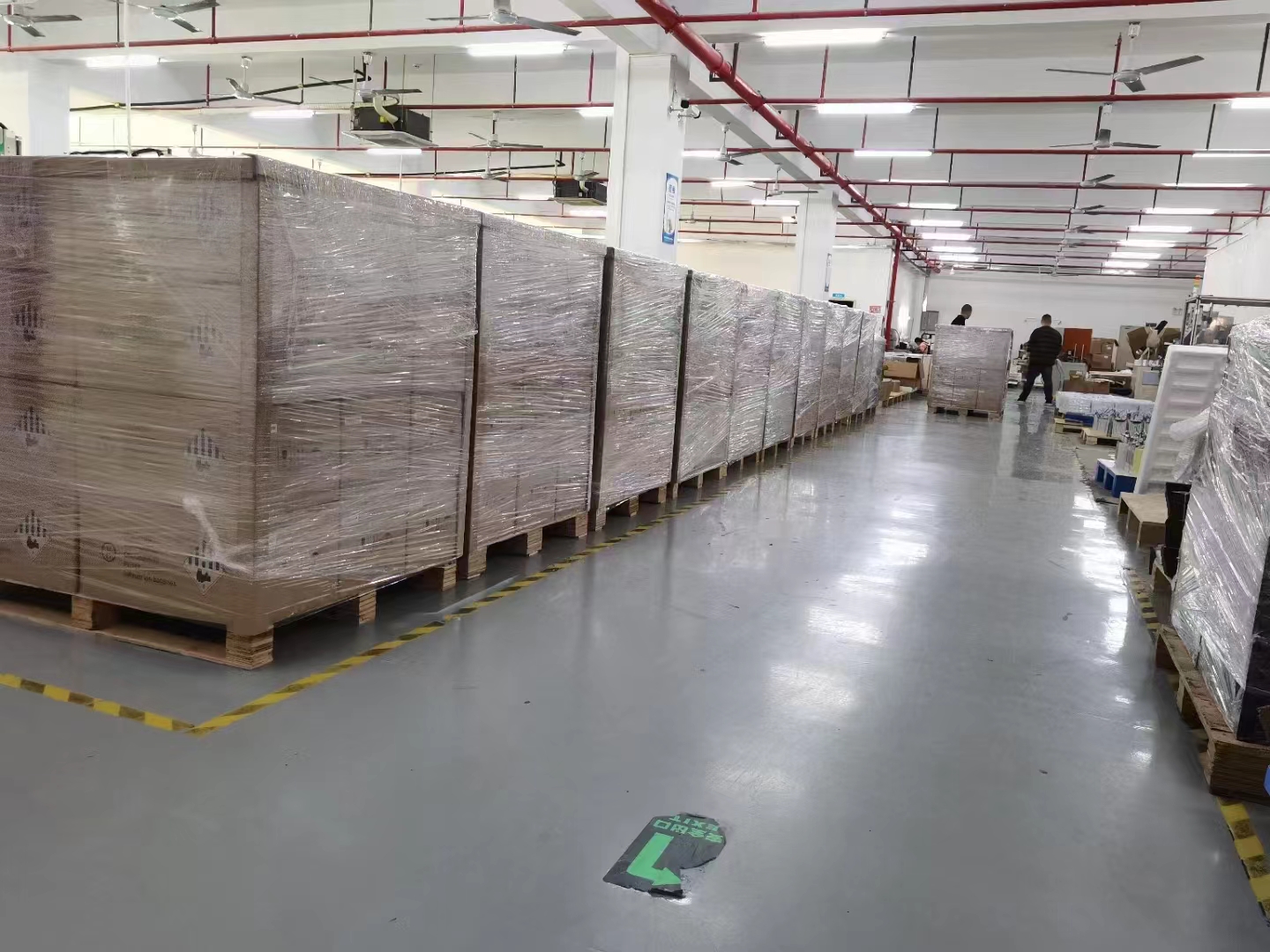

    Package



    Input characteristic:


    No.

    Item


    Technical specification


    Remark


    1

    Rated input voltage

    230Vac230Vac
    2

    Input voltage range

    3

    AC input voltage frequency

    50~60 Hz

    Protection characteristics


    No.

    Item

    Technical specification

    Remark

    1

    Over voltage protection

    Yes

    2

    Software over voltage protection

    The charger software limits the maximum output voltage to a level suitable for the connected battery system.

    3

    Thermal protection

    Yes
    4

    Current limiting protection

    Yes

    At CC mode

    5

    Short circuit protection

    Short circuit protection should be automatically recovery after remove the condition.

    6

    Reverse polarity protection

    When output wires are reversely connected to the battery the charger will not operate and will work normally when DC wires are correctly connected.


    Charging indicator

    No.ItemStatusRemark
    1Power onLED1: Red
    2ChargingLED2: Red
    3Fully chargedLED2: Green
    4

    Charging Voltage Display

    Yes
    5

    Charging Current Display

    Yes

    Safety & EMC


    No.

    Item

    Standard (or test condition)

    Remark

    1

    Electric

    strength test

    Input-output

    1500Vac/10mA/1min

    No breakdown

    2

    Isolation

    resistance

    Input-ground

    ≥10Mohm@500Vdc

    Output-ground

    ≥10Mohm@500Vdc
    3Leakage current<3.5mAVin=264Vac
    4

    LVD

    EN60335-1:2002+EN60335-2-29:2002

    Others


    FAQ:


    Q1: Can I get free sample?
    A1: Generally we don't provide free sample, but we can return sample cost when the buyer plant a bulk order.


    Q2: How should I pay?
    A2: You can pay via T/T, PayPal, Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.


    Q3: What is delivery time if we place an order?
    A3: It depends order quantities. Usually, we can deliver goods within 10 -15 working days for small orders, for more QTY. order, let's confirm when you place offical order.


    Q4: Are your factory or trading company?
    A4: We are proffesional Lifepo4 cells and packs manufacturer with our own factory and brand BENERGY. We provide all kinds of OEM/ODM services for clients around globe.


    Q5.What is your warranty?
    A5:We offer 1 year warranty for all our lithium Ion battery chargers.
